Undercounter Hot and Cold Water – FRIIA Lite HC (5000204)

SKU MARCO-FRIIA-LITE-HC-5000204

Undercounter Hot and Cold Water – FRIIA Lite HC (5000204)

Brand Marco
Industry Hotel & Resort, Canteen, Restaurant, Catering, Quick Service Restaurant, Bakery/ Coffee Chain, Cruiseship

Product Information

Description

Specifications

Download

Sleek, stylish hot/cold water system for lower-volume sites, such as a small office.

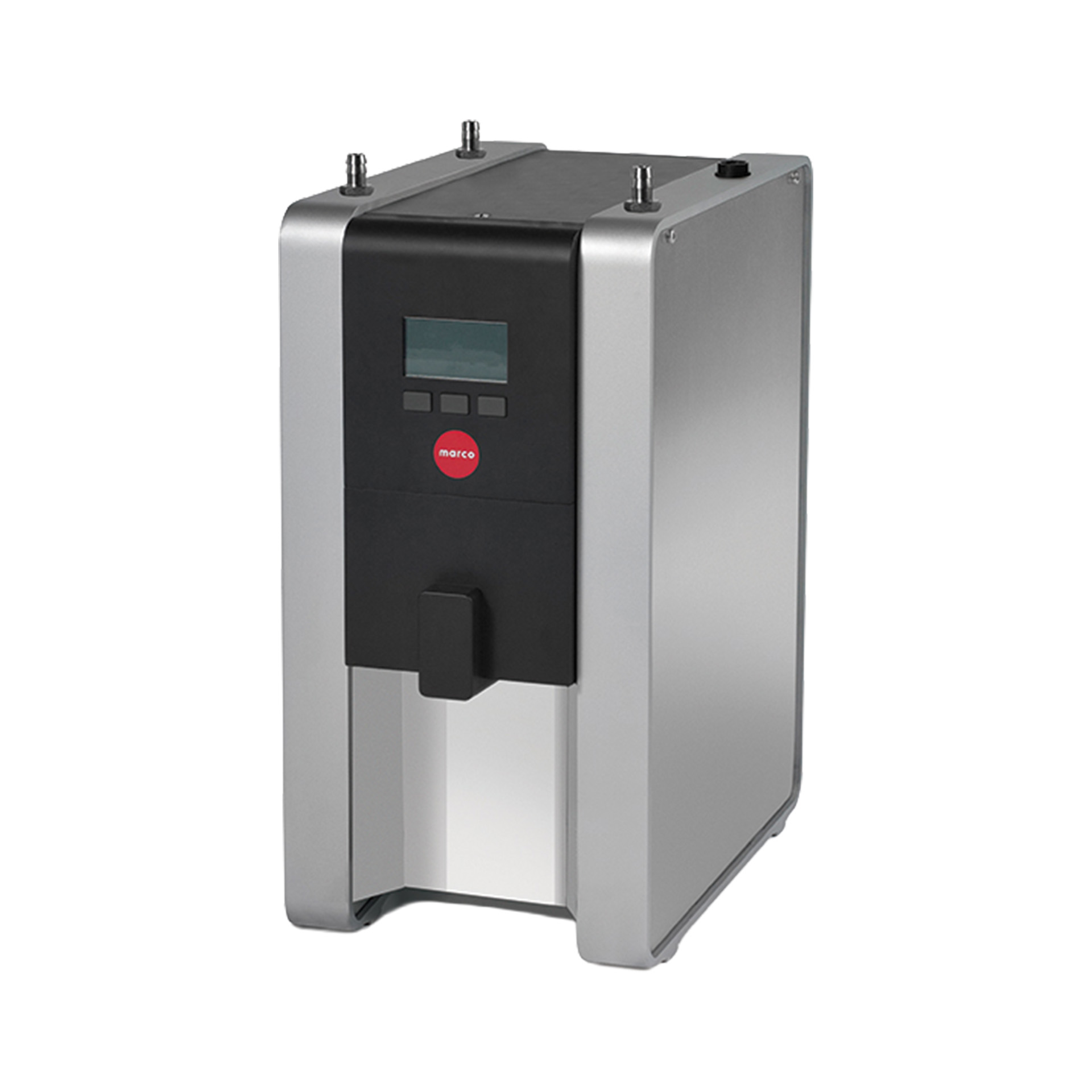

Designed with award-winning technology, the system contains our award-winning MIX UC3 water boiler, an under-counter chiller and a sleek, stylish countertop font. FRIIA Lite delivers an average 12L cold/sparkling water per hour vs. standard FRIIA 35L/hr.

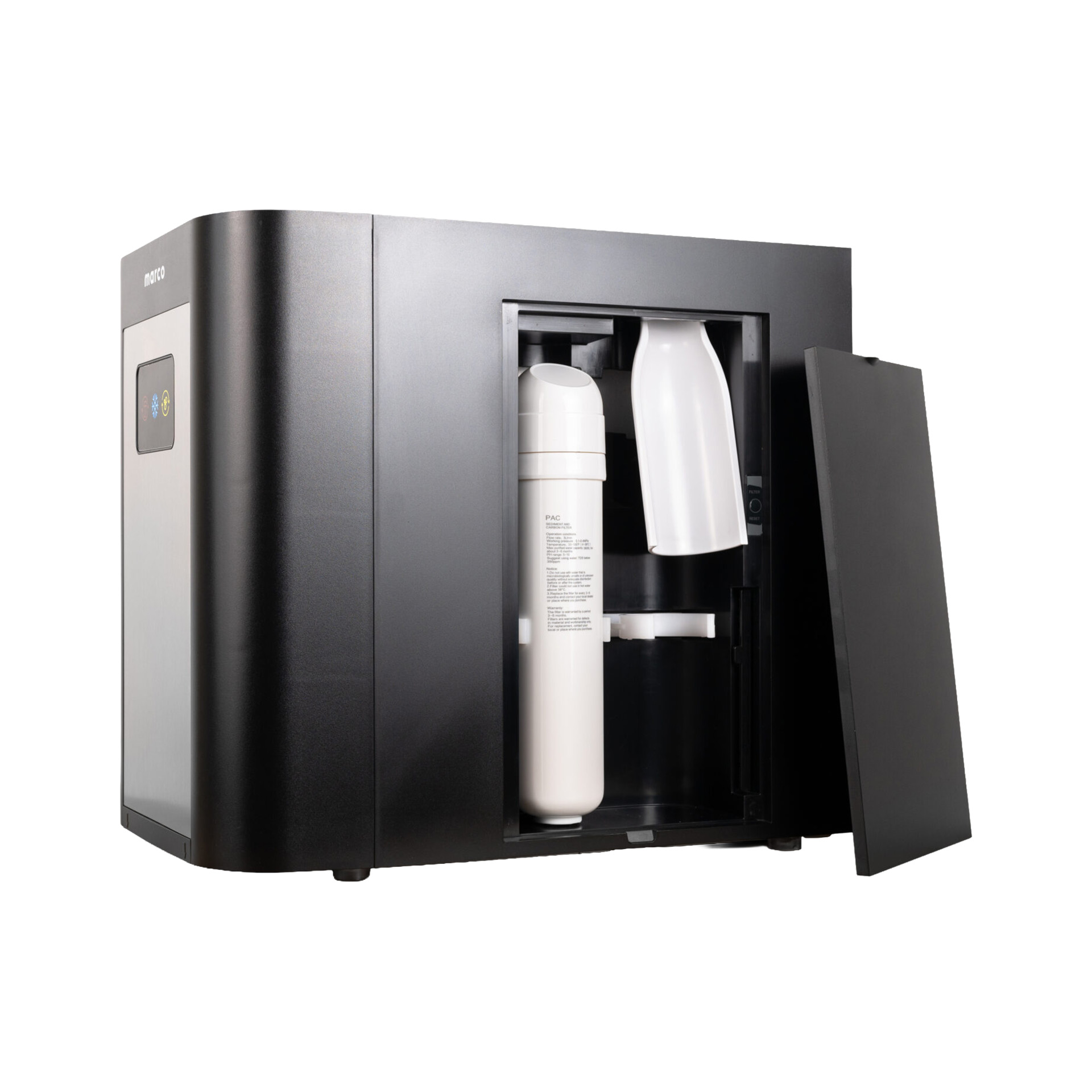

Comes with an in-built cold water filter.
FRIIA Lite components (font, boiler and chiller) are packed and shipped in individual boxes.

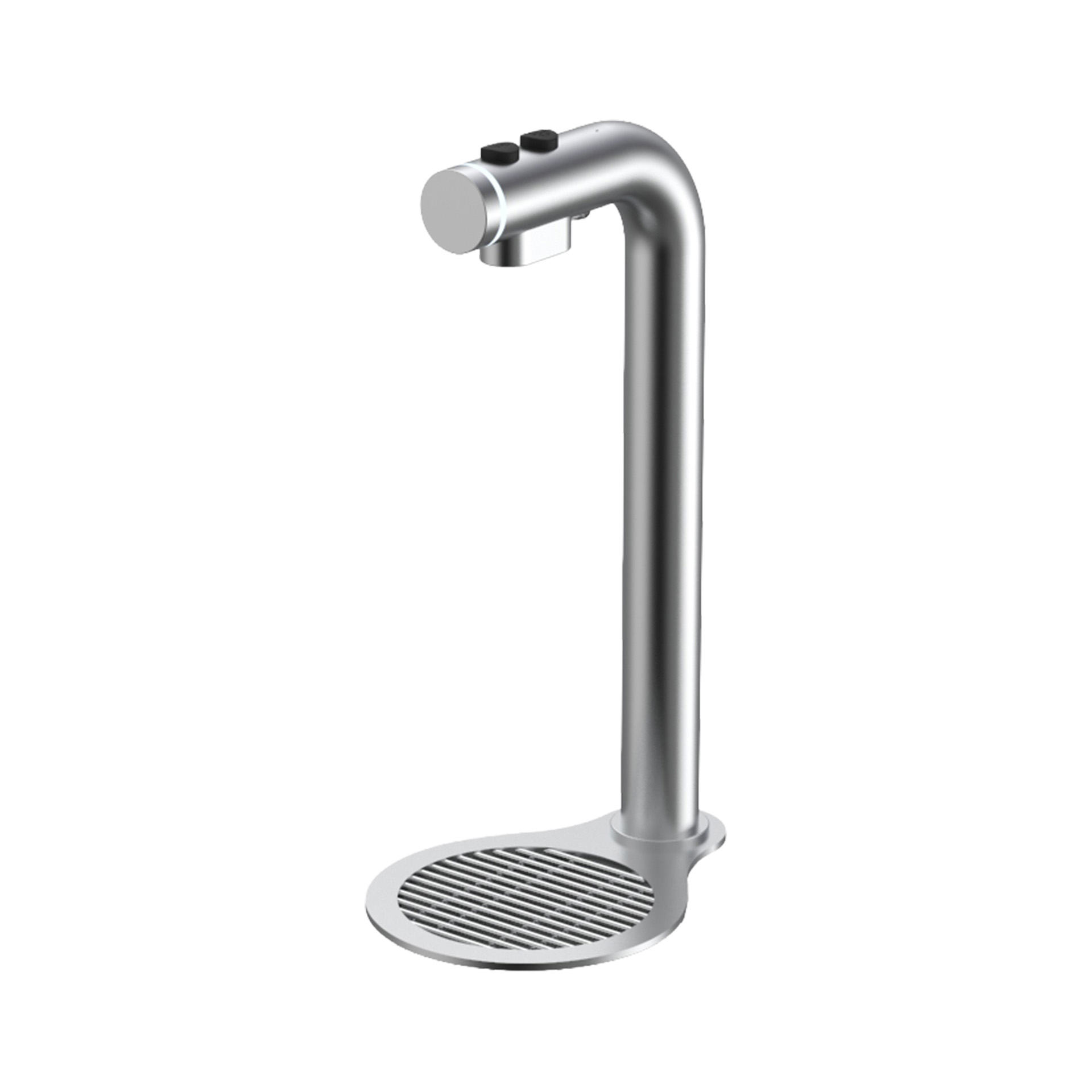

Dimension – Font: 168 x 120 x 286 mm (with drip tray)
Tap ToTray (T mm) – Font: 247
Packed Weight – Font: 1.65 Kg
Packaging Dimension – Font: 290 x 570 x 215 mm
Dimension – Chiller: 468 x 279 x 420 mm
L/Hr – Chiller: 30 – 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)
Cups/Hr – Chiller: 60
Power – Chiller: 129W
Plumbing Reqs – Chiller: 3/4" BSP
Compressor Power – Chiller: 1/8 HP
Charge – Chiller: 35 g
Refrigerant – Chiller: R600a
Packaging Dimension – Chiller: 500 x 320 x 520 mm
Packed Weight – Chiller: 21.2 Kg
Power – Boiler: 2.8 kW
Immediate Draw Off – Boiler: 3 L
L/Hr – Boiler: 28
Dimension – Boiler: 385 x 210 x 444 mm
Plumbing Reqs – Boiler: 3/4“ BSP
Packed Weight – Boiler: 11 Kg
Packaging Dimension – Boiler: 450 x 290 x 540 mm

Datasheet
Catalog

Compare models

Specification	Undercounter Hot and Cold Water – FRIIA HC (1000864)	Undercounter Hot and Cold Water – FRIIA HC Plus (1000866)	Undercounter Hot and Cold Water – FRIIA Lite HC (5000204)
Dimension - Font	168 x 120 x 286 mm (with drip tray)	168 x 120 x 286 mm (with drip tray)	168 x 120 x 286 mm (with drip tray)
Tap ToTray (T mm) - Font	247	247	247
Packed Weight - Font	2 Kg	2 Kg	1.65 Kg
Packaging Dimension - Font	290 x 570 x 215 mm	290 x 570 x 215 mm	290 x 570 x 215 mm
Dimension - Chiller	497 x 282 x 421 mm	497 x 282 x 421 mm	468 x 279 x 420 mm
L/Hr - Chiller	30 - 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)	30 - 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)	30 - 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)
Cups/Hr - Chiller	156	156	60
Power - Chiller	180W	180W	129W
Plumbing Reqs - Chiller	3/4" BSP	3/4" BSP	3/4" BSP
Compressor Power - Chiller	1/8 HP	1/8 HP	1/8 HP
Charge - Chiller	45 g	45 g	35 g
Refrigerant - Chiller	R290a	R290a	R600a
Packaging Dimension - Chiller	400 x 600 x 580 mm	400 x 600 x 580 mm	500 x 320 x 520 mm
Packed Weight - Chiller	41 Kg	41 Kg	21.2 Kg
Power - Boiler	2.8 kW	2.8 kW	2.8 kW
Immediate Draw Off - Boiler	3 L	3 L	3 L
L/Hr - Boiler	28	28	28
Dimension - Boiler	385 x 210 x 444 mm	385 x 210 x 617 mm	385 x 210 x 444 mm
Plumbing Reqs - Boiler	3/4“ BSP	3/4“ BSP	3/4“ BSP
Packed Weight - Boiler	11 Kg	14 Kg	11 Kg
Packaging Dimension - Boiler	450 x 290 x 540 mm	450 x 290 x 700 mm	450 x 290 x 540 mm
More information	More information	More information	This product
