Undercounter Hot, Cold and Sparkling Water – FRIIA HCS (1000865)

SKU MARCO-FRIIA-HCS-1000865

Undercounter Hot, Cold and Sparkling Water – FRIIA HCS (1000865)

Brand Marco
Industry Hotel & Resort, Canteen, Restaurant, Catering, Quick Service Restaurant, Bakery/ Coffee Chain, Cruiseship

Product Information

Description

Specifications

Download

FRIIA HCS is a hot/cold/sparkling undercounter water delivery system with 3L immediate draw off hot-water.

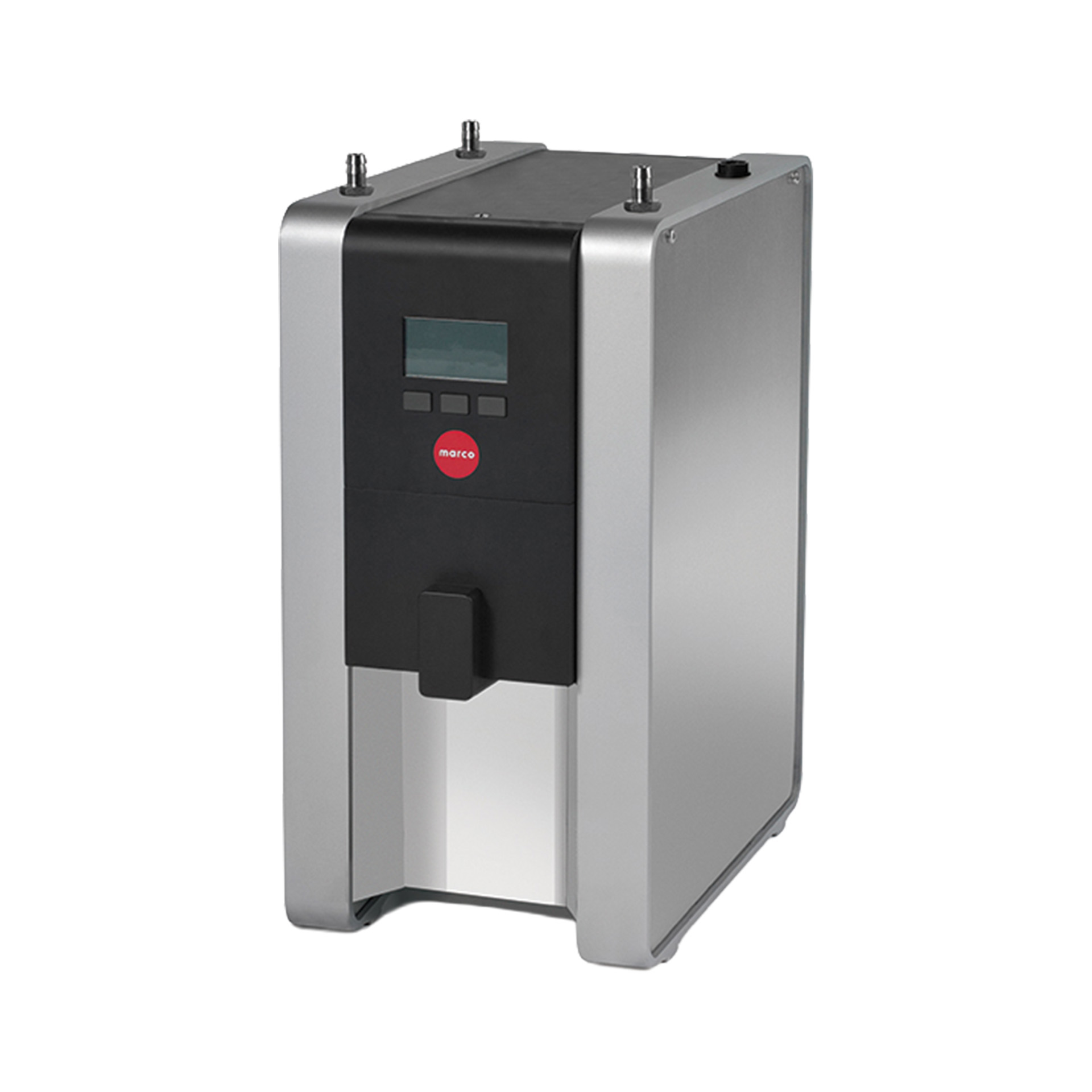

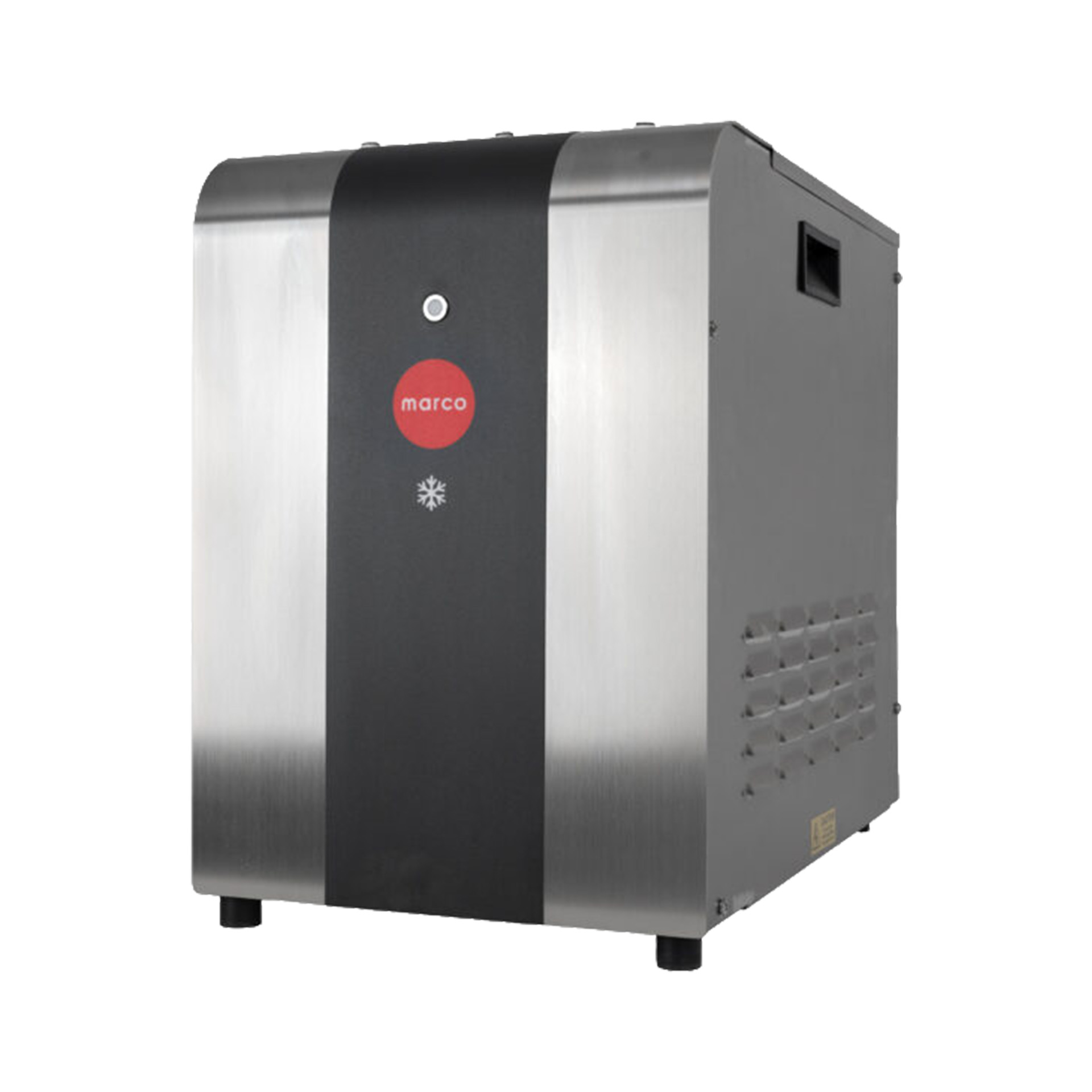

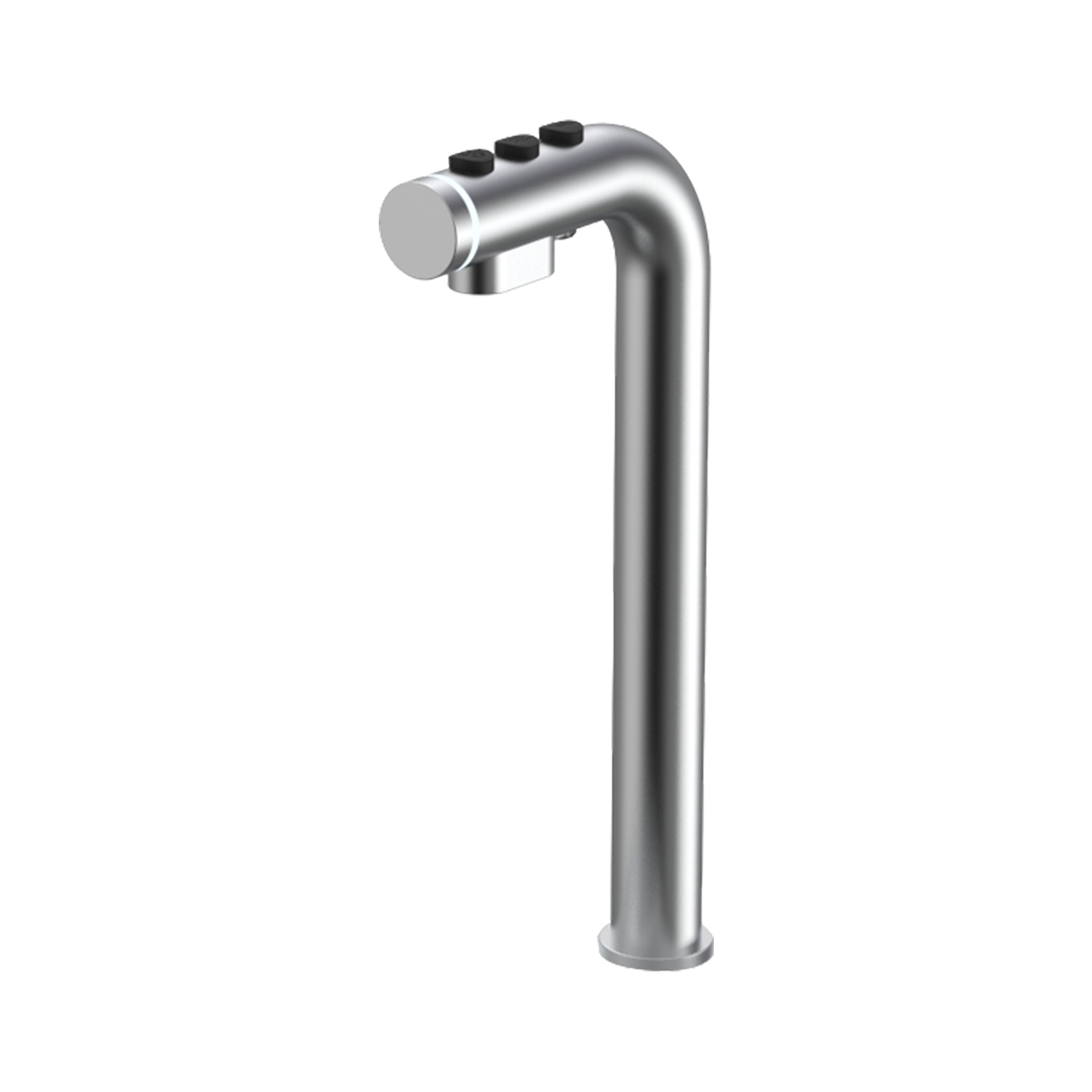

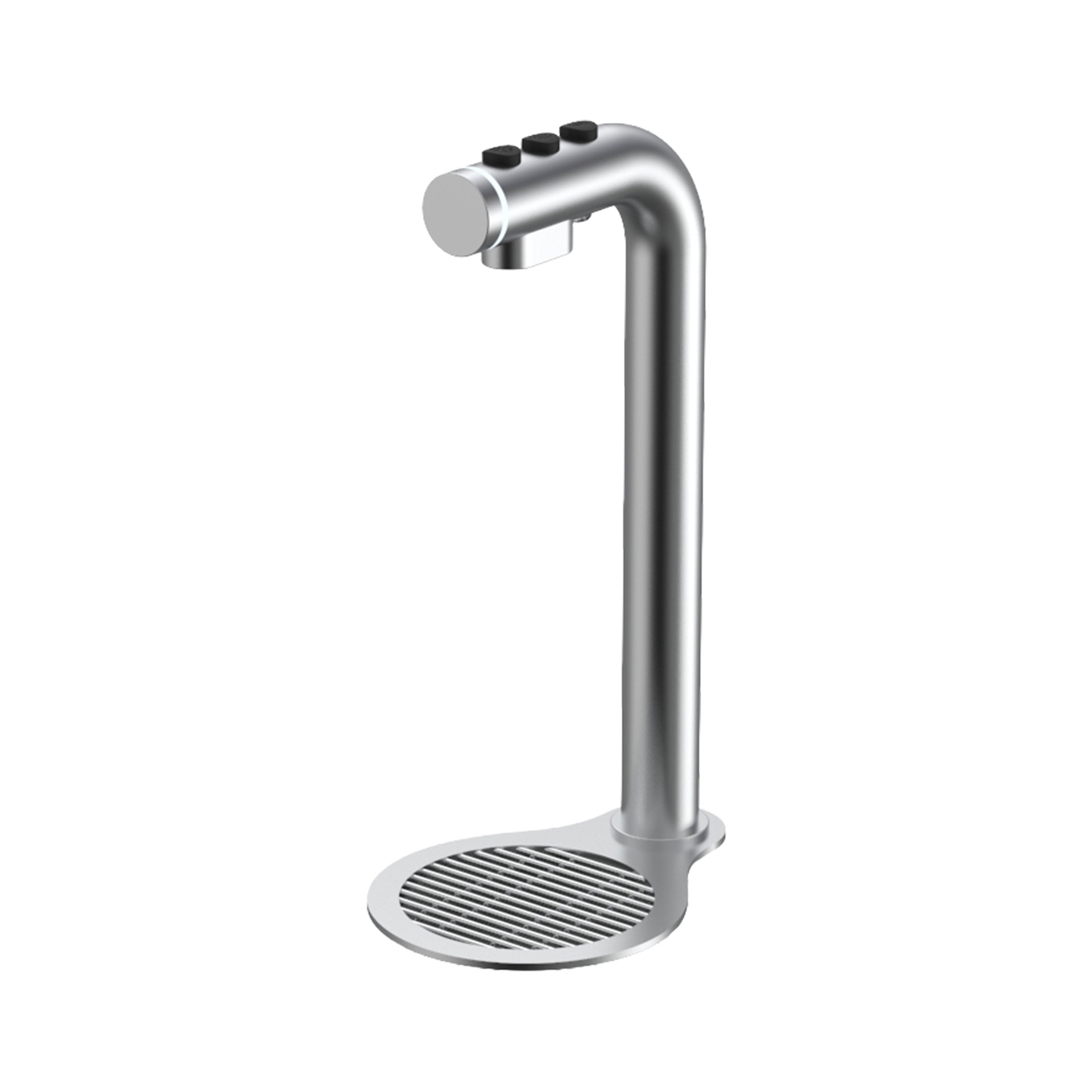

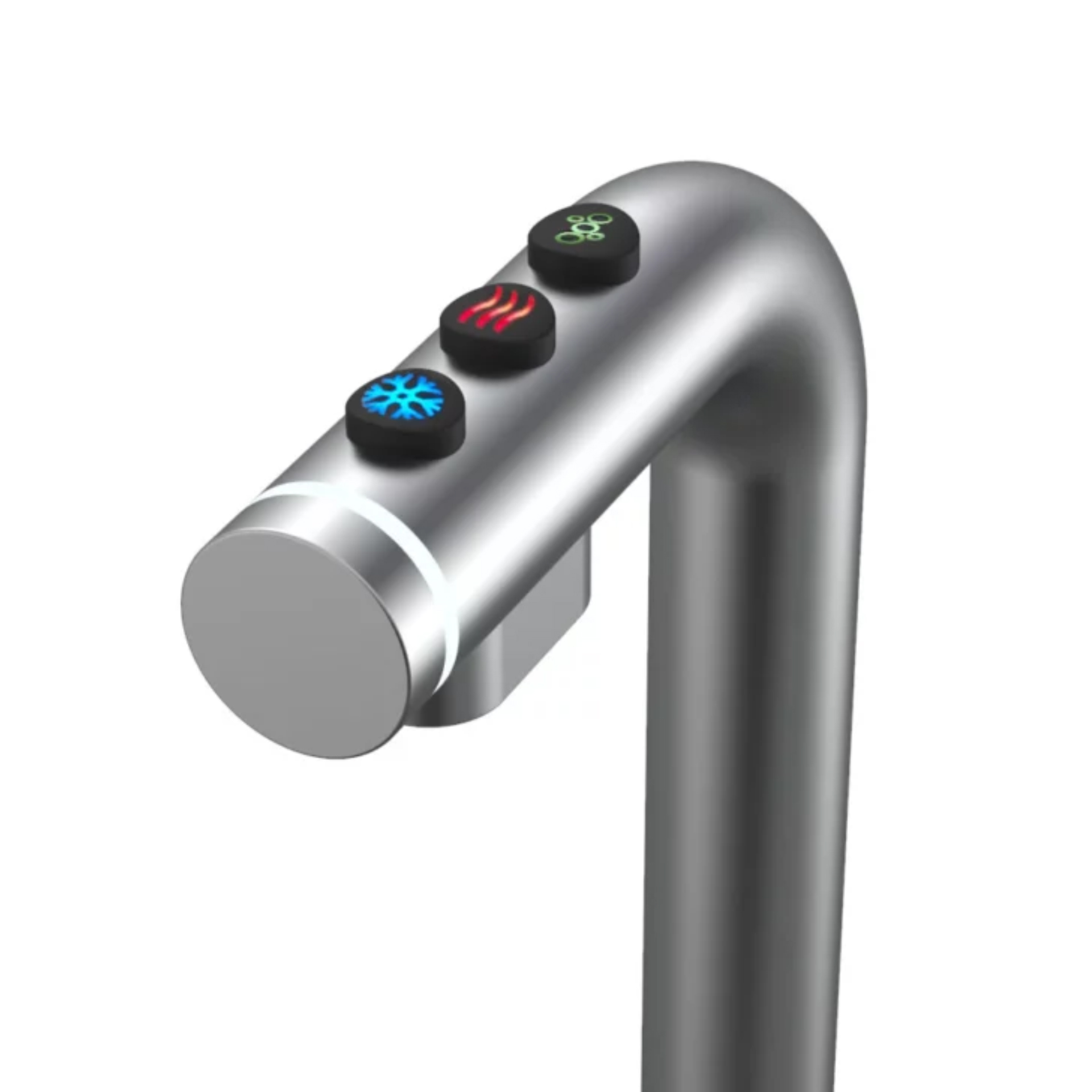

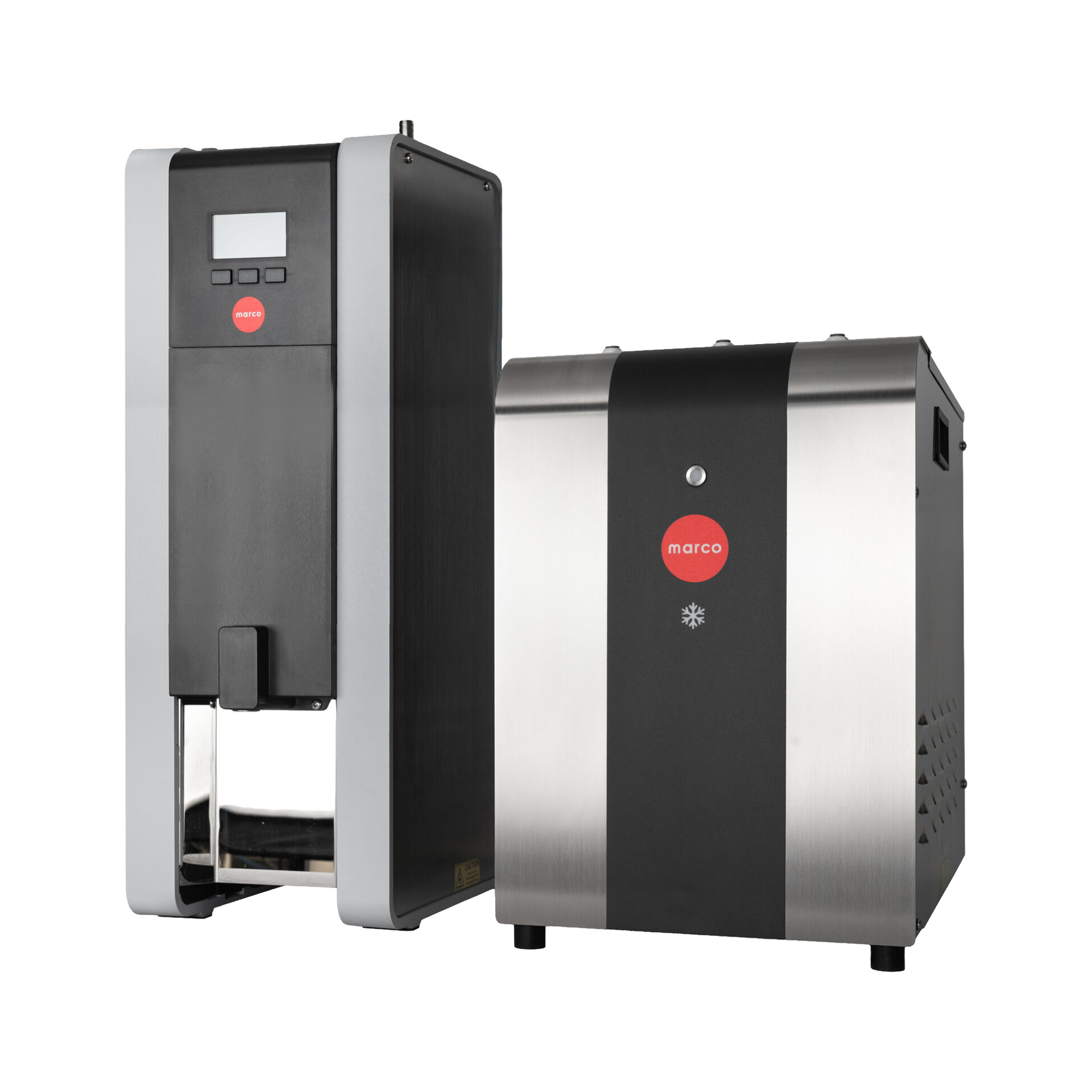

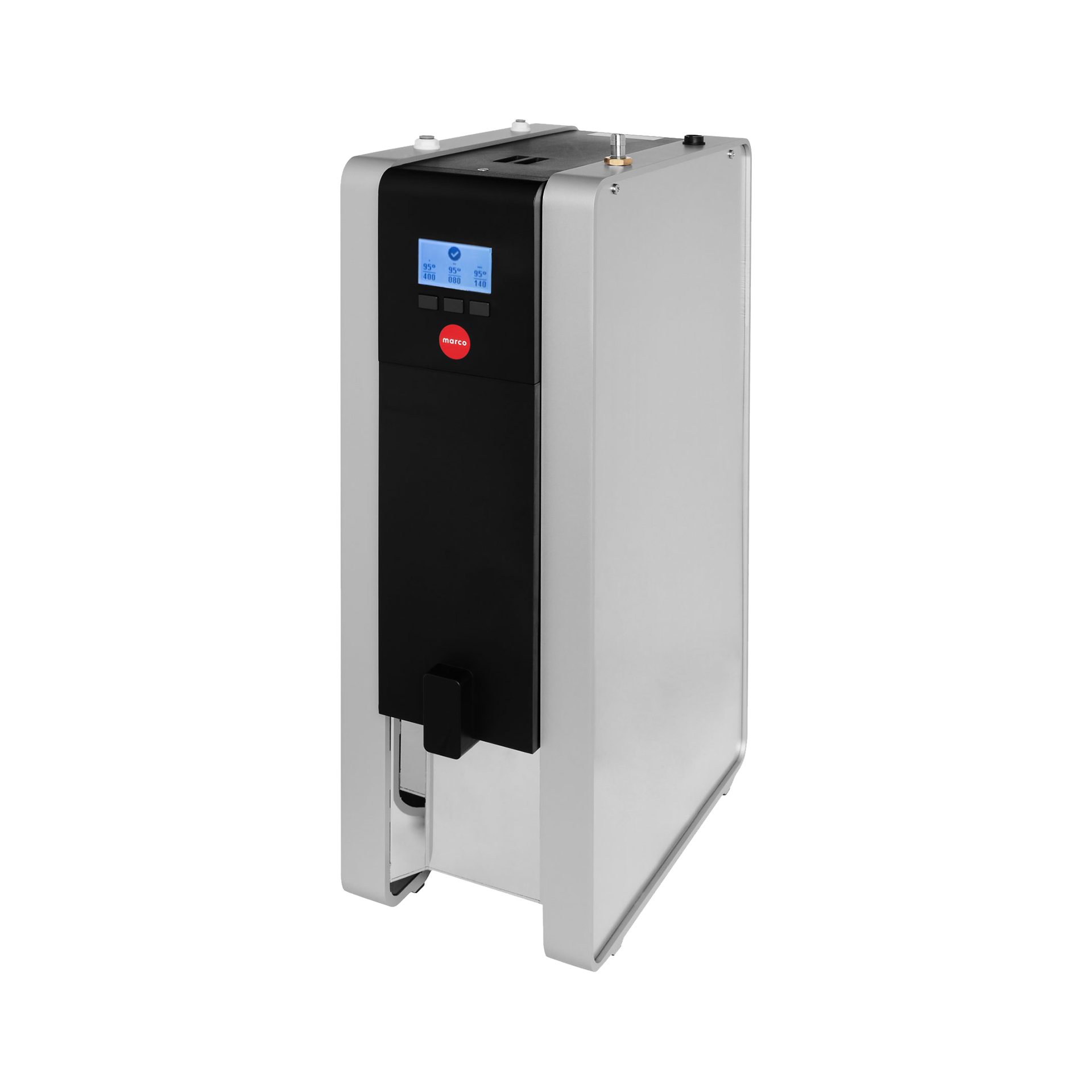

Designed with award-winning technology, the system contains an undercounter boiler and chiller and a sleek, stylish countertop font. FRIIA is the perfect system for offices, office kitchens, canteens, gyms, schools, colleges and small coffee shops.
Includes CO2 Regulator and Drip-tray.
Hot: 28 L/hr.
Cold/Sparkling: 35-40 L/hr.
FRIIA components (font, boiler and chiller) are packed and shipped in individual boxes. FRIIA Sparkling variants require either an internal CO2 canister (we recommend SodaStream 60L) or an external food grade CO2 with regulator.

Dimension – Font: 168 x 120 x 286 mm (with drip tray)
Tap ToTray (T mm) – Font: 247
Packed Weight – Font: 2 Kg
Packaging Dimension – Font: 290 x 570 x 215 mm
Dimension – Chiller/Carbonator: 497 × 282 × 421 mm
L/Hr – Chiller/Carbonator: 30 – 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)
Cups/Hr – Chiller/Carbonator: 156
Power – Chiller/Carbonator: 180W
Plumbing Reqs – Chiller/Carbonator: 3/4" BSP
Compressor Power – Chiller/Carbonator: 1/8hp
Charge – Chiller/Carbonator: 45 g
Refrigerant – Chiller/Carbonator: R290
Packaging Dimension – Chiller/Carbonator: 400 × 600 × 580 mm
Packed Weight – Chiller/Carbonator: 41 Kg
Power – Boiler : 2.8 kW
Immediate Draw Off – Boiler: 3 L
L/Hr – Boiler: 28
Dimension – Boiler: 385 x 210 x 444 mm
Plumbing Reqs – Boiler: 3/4“ BSP
Packed Weight – Boiler: 11 Kg
Packaging Dimension – Boiler: 450 x 290 x 540 mm

Datasheet
Catalog

Compare models

Specification	Undercounter Hot, Cold and Sparkling Water – FRIIA HCS (1000865)	Undercounter Hot, Cold and Sparkling Water – FRIIA HCS Plus (1000867)	Undercounter Hot, Cold and Sparkling Water – FRIIA Lite HCS (5000203)
Dimension - Font	168 x 120 x 286 mm (with drip tray)	168 x 120 x 286 mm (with drip tray)	168 x 120 x 286 mm (with drip tray)
Tap ToTray (T mm) - Font	247	247	247
Packed Weight - Font	2 Kg	1.65 Kg	2 Kg
Packaging Dimension - Font	290 x 570 x 215 mm	290 x 570 x 215 mm	290 x 570 x 215 mm
Dimension - Chiller/Carbonator	497 × 282 × 421 mm	497 x 282 x 421 mm	468 x 279 x 420 mm
L/Hr - Chiller/Carbonator	30 - 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)	30–40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)	30 - 40 L/hr (based on incoming water temp of 15°C and output water temp of 5–7°C)
Cups/Hr - Chiller/Carbonator	156	156	60
Power - Chiller/Carbonator	180W	180W	129W
Plumbing Reqs - Chiller/Carbonator	3/4" BSP	3/4" BSP	3/4" BSP
Compressor Power - Chiller/Carbonator	1/8hp	1/8 HP	1/8 HP
Charge - Chiller/Carbonator	45 g	45 g	35 g
Refrigerant - Chiller/Carbonator	R290	R290a	R600a
Packaging Dimension - Chiller/Carbonator	400 × 600 × 580 mm	400 x 600 x 580 mm	500 x 320 x 520 mm
Packed Weight - Chiller/Carbonator	41 Kg	41 Kg	21.2 Kg
Power - Boiler	2.8 kW	2.8 kW	2.8 kW
Immediate Draw Off - Boiler	3 L	3 L	3 L
L/Hr - Boiler	28	28	28
Dimension - Boiler	385 x 210 x 444 mm	—	385 x 210 x 444 mm
Plumbing Reqs - Boiler	3/4“ BSP	3/4“ BSP	3/4“ BSP
Packed Weight - Boiler	11 Kg	14 Kg	11 Kg
Packaging Dimension - Boiler	450 x 290 x 540 mm	450 x 290 x 700 mm	450 x 290 x 540 mm
Cups/Hr - Boiler	—	156	—
More information	This product	More information	More information
